Open GL - Assignment 1

Assignment 1

The first assignment was to model a favourite toy of ours using openGL, where not only simple polygons can be used to model the toy, but also lighting, movement enabled functions and many other features to further improve the toy.

What i modelled was an M-16 rifle.

It was pretty tough at first to model such an object, as there were many different small and sophisticated parts that i have to model.
For some of the curved parts, i tried using polygons, but since Polygons may pose quite a bit of a problems sometime, i stick to using Quads.

For the lighting, i used a specular lighting instead of a diffuse lighting, as the rifle's surface is metalic and shiny.

This is the final Product of my M-16 model. Lighting was included, including rotation functions to view different parts of the rifle, there is also a passive function where the rifle fires constanly, bullets can be seen shooting out and the empty shells dropping.

Final Model

The file/code for the model can be downloaded through the download box at the right.

Open GL - Practical 7

Practical 7

Practical 7 is for us to learn how to create quadratic ojects such as cylinders and disk and also to creat lighting.

These are the shapes i came up with

Cylinder

Cylinder with lighting

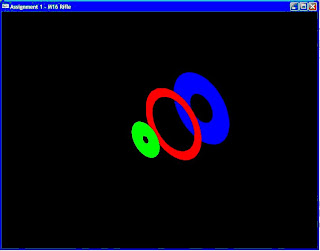

Disk

Sample code for the cylinder:

glPushMatrix();
glTranslatef(0, 0, -20);
cylinder = gluNewQuadric();
glColor3ub(255,0,0);
gluCylinder(cylinder,5,5,30,32,32);//bigger
gluQuadricDrawStyle(cylinder, GLU_FILL);

glPushMatrix();
glTranslatef(0, 0, -20);
glColor3ub(0,0,255);
gluCylinder(cylinder,8,8,20,32,32);//bigger
gluQuadricDrawStyle(cylinder, GLU_FILL);
glPopMatrix();

glPushMatrix();
glTranslatef(0, 0, 20);
glColor3ub(0,255,0);
gluCylinder(cylinder,2,2,40,32,32);//bigger
gluQuadricDrawStyle(cylinder, GLU_FILL);
glPopMatrix();

glPopMatrix();

Open GL - Practical 5

Practical 5


For practical 5, we were ask to try out playing with Modelview Matrix and understanding how to use glPopMatrix(); and glPushMatrix();
This are the following practical exercises.

Exercise 1

1) glVertex3f(0,0,0); = (0*4+2, 0*4+3, 0*4+1) = (2, 3, 1)
glVertex3f(0,1,0); = (0*4+2, 1*4+3, 0*4+1) = (2, 7, 1)
glVertex3f(1,1,0); = (1*4+2, 1*4+3, 0*4+1) = (6, 7, 1)
glVertex3f(1,0,0); = (1*4+2, 0*4+3, 0*4+1) = (6, 3, 1)

2) The matrix is a scaling followed by a translation. Scaling is (4); translation is by (2, 3, 1).

3) The reason is because the function will multiply the current Model View matrix with whatever the function called. So if 2 or more matrix of transformation are implied, it will be over written and the results will not be accurate. That’s why the stack system is used to store the previous transformation.


Exercise 3

glBegin(GL_QUADS);
glColor3ub(255,0,0); //red
glVertex3f(10.0f, 10.0f, 10.0);
glVertex3f(10.0f, -10.0f, 10.0);
glVertex3f(-10.0f, -10.0f, 10.0);
glVertex3f(-10.0f, 10.0f, 10.0);

glColor3ub(0,0,255); //blue
glVertex3f(10.0f, 10.0f, 10.0);
glVertex3f(10.0f, 10.0f, -10.0);
glVertex3f(10.0f, -10.0f, -10.0);
glVertex3f(10.0f, -10.0f, 10.0);

glColor3ub(255,255,0); //yellow
glVertex3f(-10.0f, 10.0f, 10.0);
glVertex3f(-10.0f, 10.0f, -10.0);
glVertex3f(-10.0f, -10.0f, -10.0);
glVertex3f(-10.0f, -10.0f, 10.0);

glColor3ub(255,255/2,0); //brown/orange
glVertex3f(10.0f, 10.0f, -10.0);
glVertex3f(10.0f, -10.0f, -10.0);
glVertex3f(-10.0f, -10.0f, -10.0);
glVertex3f(-10.0f, 10.0f, -10.0);

glColor3ub(0,255,0); //green
glVertex3f(10.0f, 10.0f, 10.0);
glVertex3f(-10.0f, 10.0f, 10.0);
glVertex3f(-10.0f, 10.0f, -10.0);
glVertex3f(10.0f, 10.0f, -10.0);

glColor3ub(255,0,255); //pink
glVertex3f(10.0f, -10.0f, 10.0);
glVertex3f(-10.0f, -10.0f, 10.0);
glVertex3f(-10.0f, -10.0f, -10.0);
glVertex3f(10.0f, -10.0f, -10.0);
glEnd();


Programming Exercise - Create a solar system





Creating the solar system. First, the basic layout has to be made, so i create lots of sphere and a torus, used push, pop and translation matrix to get them in place.
Than functions had to be included to rotate some of the spheres and spin the torus. I did this using keyboard functions by declaring global variables and fucntions.

For example:

GLfloat yy = 0.0f;
GLfloat zz = 0.0f;

glRotatef(::yy,0,1,0);
glRotatef(::zz,0,0,1);

void Keyboard(unsigned char key, int x, int y)
{
switch(key) //check which key is pressed
{
case 'a':
yy++;
break;
case 'w':
zz--;
break;
case 's':
zz++;
break;
case 'd':
yy--;
break;
}
}

Open GL - Practical 4

Practical 4

This are some of the things we did in practical 4.

Using Open Gl to create different shapes in 3D space such as spheres and triangles.

This is the Open Gl depth test, we did this so as to practice coding shapes in 3D, this is to show whether the objects are being blocked or not.

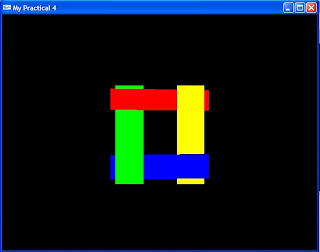

This is the simple Final Product we had to come out with, note that this is not 4 different coloured rectangles lying on top of each other, this is just the view from 1 side, to explain this, the picture of it in 3D space is shown below.

The codes and answers to practical 4 are in the download box.

Computer Graphic - Open GL

Practical 2

Computer Graphic is very interesting. We were ask to get familiair with Open GL by learning the basics, Open GL is a kind of programming language that draws shapes and many other interesting stuff, a little different from C++.
We were thrown the main assignment of coding a meltdown, a meltdown is basically some sort of liquid flowing down a vertical piece of glass, where the liquid slowly melts itself down. In basic Open GL, there are 3 points to code for plotting a point, the X-axis, Y-axis and Z-axis.
So we were actually having loads of fun playing around with Open GL, occasionally disturbing each other =).
The 3 things coded are a StaticScreen, SineWave and a MeltDown.
The sample videos can be downloaded at the right hand side.


Practical 3

Again, we played around Open GL once more, this time to grasp the main concept of using it. So we did some simple shapes of different colors. What we did basically was to plot the point and make lines, squares, triangles and many other shapes. This are just some of the screenshots taken.
The sample codes can be downloaded at the right hand side.
